Description

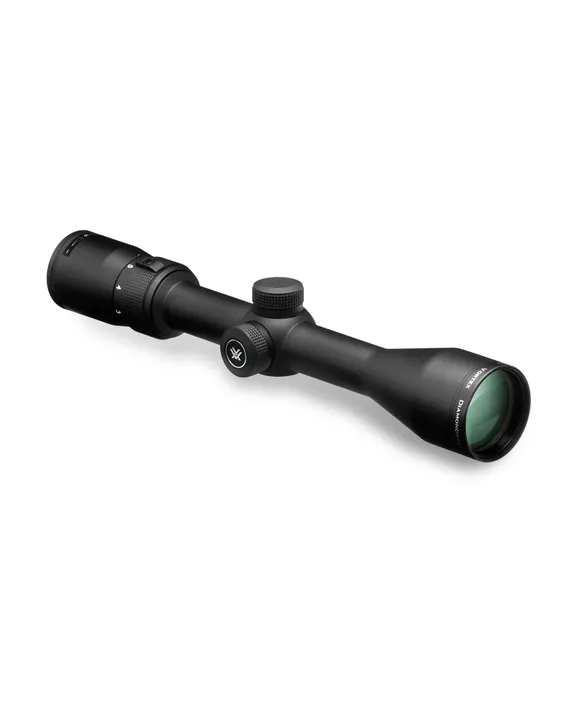

VORTEX Diamondback® 3-9×40 Dead-Hold® BDC (MOA) Reticle | 1inch Tube
With a long legacy of proven grit, Diamondback® is a true workhorse, delivering hard-working reliability in trusted lineup of models. Excellent low-light capability. Brilliant contrast and sharpness that serves up impressive images. Renowned for toughness and accuracy, it’s built with durable construction and a lightweight design, giving hunters the confidence to push further and succeed in any terrain. Simple to use and rugged enough for any hunt, Diamondback® is made to go the distance, from the East to the Rockies and beyond.
Included in the Box
- Removable Lens Covers
- Lens Cloth
Diamondback 3-9×40 Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 11.61 | 2.0 | 2.1 | 5.4 | 3.07 | 3.1 |
| Heights | |
|---|---|
| H1 | H2 |
| 1.89 | 1.69 |
Recommended uses
Hunting
| Magnification | 3-9x |
|---|---|
| Objective Lens Diameter | 40 mm |
| Focal Plane | Second Focal Plane |

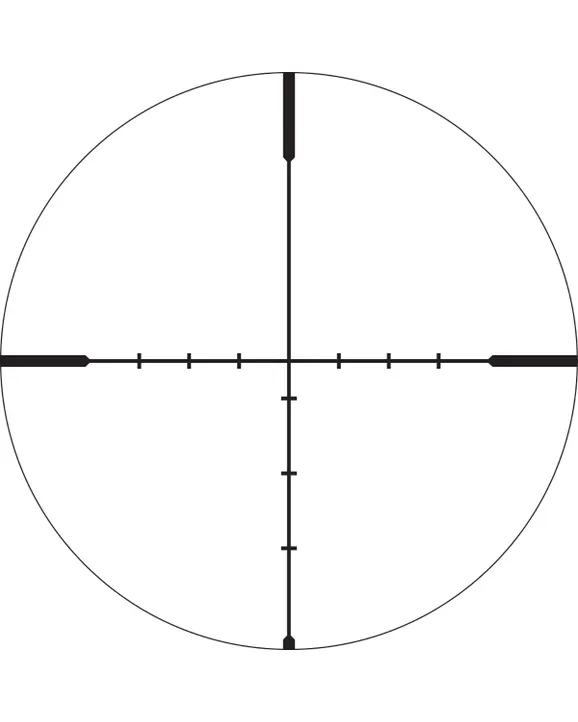

| Reticle | Dead-Hold® BDC (MOA) |
| Eye Relief | 3.3″ |
| Field of View | 44.6′ – 14.8′ @ 100 yds |
| Turret Style | Capped |
| Tube Size | 1 inch |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 15 MOA |
| Max Elevation Adjustment | 70 MOA |
| Max Windage Adjustment | 70 MOA |
| Parallax Setting | 100 yds. |
| Length | 11.6″ |
| Weight | 14.5 oz |
